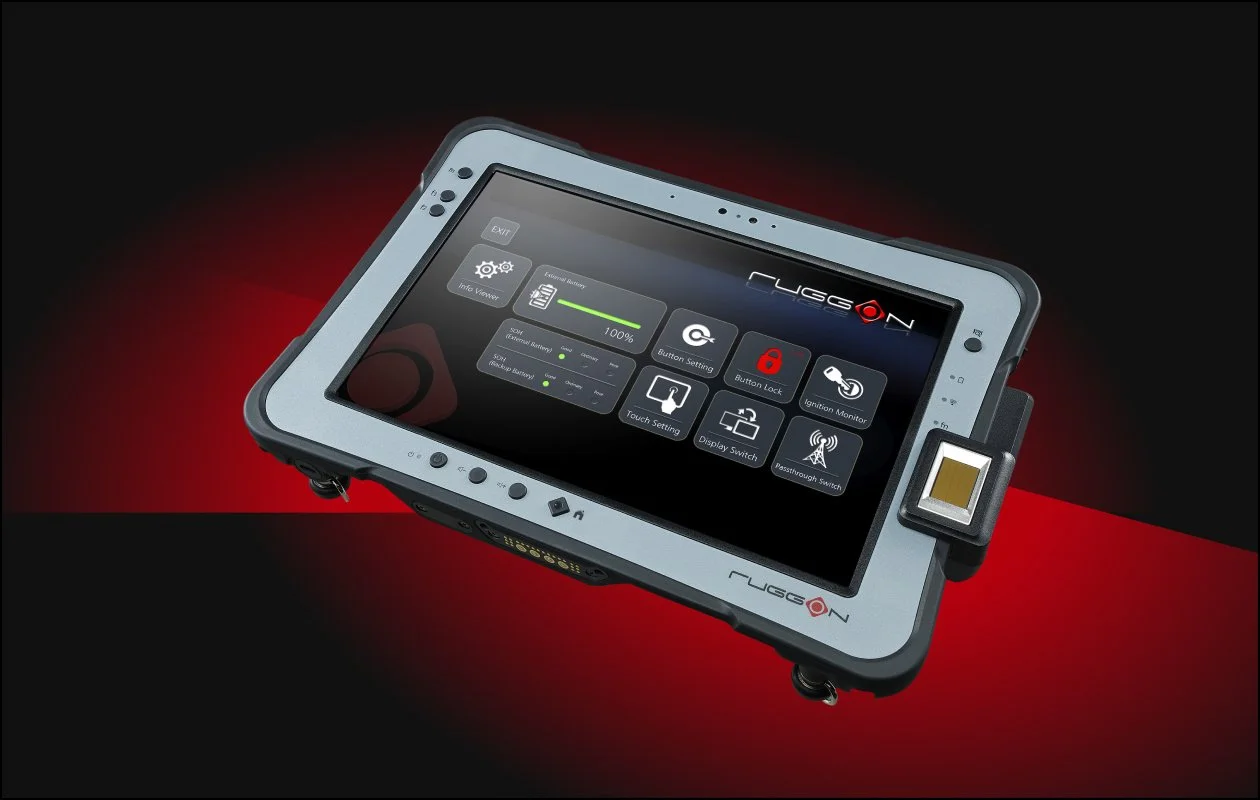

Pa501

The PA501 rugged Android tablet boasts its exceptional performance, improved efficiency, ultra-durable battery life and perfect additions.

10.1" rugged tablet with Qualcomm® Octa-Core processor and Android 12

Sunlight readable display supports night mode and stealth mode

4G LTE with SIM card supported.

802.11ac 2x2 MU-MIMO, optional built-in NFC

Hot-swap battery plus fast charging offers near indefinite capacity

MIL-STD 810G, MIL-STD-461G and IP65 certified

FirstNet Ready™ and supports Band 14 connectivity

The dedicated expansion options maximize efficiency in the field

Purpose-built Adaptability

Fitted with sunlight readable and hyper dimming technologies, PA501 ensures a clearly legible display in various light conditions no matter indoors or outdoors. The stealth mode can enhance your personal mobility and safety during each critical mission.

Purpose-built Adaptability

ACCESSORIES

RuggGear RDK-501 (Copy)

Detachable Keyboard

Key Features :
- Foldable design likes a laptop
- Touchpad supports multi-finger gestures
- Available in multiple language layouts
- Integrated green backlighting with 4 levels of brightness

Specs :
- IP54 rating
- Operating Temperature : -10°C ~ 50°C
- Dimensions : 280 x 210 x 10mm
- Weight : 900g

RuggGear Loading Vest (Copy)

Easily adjust the vest to support tablet at any angle

Replace battery without removing the tablet

Fully adjustable for field worker of all shapes and sizes

Provide double protection from tablet drop

Reflective stripes on back of vest

Hand Strap (Copy)

Hand strap for RuggON 10.1" rugged tablet

Handle (Copy)

RuggGear Multi-use Carry Bag (Copy)

Capable of multiple ways to wear based on different task needs. It allows the bag to configure into a hip bag, waist bag, thigh bag

Great for climbing and working at heights

Shoulder Strap (Copy)

DT06 Desktop Dock (Copy)

Specs:

- I/O: USB 3.0 x 2, USB 2.0 x 2, VGA x 1, HDMI x 1

- Operating Temperature: 0°C ~ 50°C

- Dimensions: 180 x 151 x 77 mm

- Weight: 1400g

SB01 4500mAh Battery (Copy)

Specs:

- Standard 4500mAh battery

- 10.8V, 4500mAh (48.6Wh)

EB03 9000mAh Battery (Copy)

Specs:

Extended 9000mAh battery

- 10.8V, 9000mAh (97.2Wh)

EB200 Dual-Bay Battery Charger (Copy)

Features:

- 2-bay design, each bay can support both standard and extended battery

- Clear LED indicators, power and charging status

- Share the same power adapter with Tablet

- Dimensions: 154 x 106 x 80 mm

- Weight: 600g

RSK-BC400 4 bay battery charger (Copy)

Specs:

- 4-bay design, each bay can support both standard and extended battery

- Clear LED indicators, power and charging status

- Dimensions: 214 x 207 x 83 mm

- Weight: 1530g

RSK-FM03 Magnetic Stripe Reader (MSR) (Copy)

Key Features:

Solid mechanism design and simply plug into USB port

Specs:

- Reference Standards: ANSI / ISO Standards 7810,7811-1/6, 7813, JIS II

- Decoding Method: ISO Track1 - IATA, Track2 - ABA and

Track3 - THRIFT

- Card Swiping Speed: card speed through the unit may vary from 3 ips to 100 ips

- IPX5 design

- Supports OS: Windows & Android

- Dimensions: 59 x 41 x 23 mm

- Weight: 100g

RSK-FM04 Machine Readable Zone Reader (MRZ) (Copy)

Key Features :

Solid mechanism design and simply plug into USB port

Specs:

- Standard OCR fonts : OCR-B

- Machine readable passports (MRP): 2 lines of 44 characters

- Machine readable visas (MRV): 2 lines of 44 characters, 2 lines of 36 characters

- Travel documents: 2 lines of 36 characters, 3 lines of 30 characters

- IPX5 design

- Supports OS: Windows & Android

- Dimensions: 59 x 41 x 23 mm

- Weight: 100g

RuggGear RSK-FM02 Fingerprint Reader + Machine Readable Zone Reader (MRZ), 2 in 1 (Copy)

Key Features:

- Integrated fingerprint reader and MRZ reader in one module

- Solid mechanism design and simply plug into USB port

Specs:

- Supports OS: Windows & Android

- Dimensions: 59 x 41 x 23 mm

- Weight: 105g

RuggGear RSK-FP02 Fingerprint Reader (Copy)

Key Features :

- Meet IPX5 and FIPS 201 PIV certification

- Accurately scan and verify biometric characteristics in seconds

- Solid mechanism design and simply plug into USB port

Specs:

- FIPS 201 PIV Certificate

- Capacitive type, 508 dpi

- FAP10

- Supports OS: Windows & Android

- Supports Windows Hello plug and play

- Dimensions: 108 x 49 x 28 mm

- Weight: 40g

RuggGear RSK-FM01 Fingerprint Reader + Magnetic Stripe Reader (MSR), 2 in 1 (Copy)

Key Features :

- Integrated fingerprint reader and MSR reader in one module

- Accurately scan and verify biometric characteristics in seconds

- Solid mechanism design and simply plug into USB port

Specs:

- IPX5 design

- Supports OS: Windows & Android

- Dimensions: 59 x 41 x 23 mm

- Weight: 105g

Fingerprint Reader:

-FIPS 201 PIV certificate

- Capacitive type, 508 dpi

-FAP10

- Supports Windows Hello plug and play

MSR:

- Reference Standards: ANSI/ISO Standards 7810,7811-

1/6, 7813, JIS II

- Decoding Method: ISO Track1 - IATA, Track2 - ABA and

Track3 – THRIFT

- Card Swiping Speed: Card speed through the unit may vary from 3 ips to 100 ips

RSK-HS01 Hard Handle (Copy)

RSK-HS01 serves as a stand and is available to carry a tablet around, in and off a vehicle, or on a factory floor.

VB04 VESA Bracket (Copy)

Specs:

- Dimensions: 219 x 199 x 20 mm

- Weight: 730g

VD06 Vehicle Dock (Copy)

Key Features :

- Rich ports support additional external devices

- Fuse for over current protection

- Easy swap fuse design

- Lock with pairing key

- Flexible antenna pass-through setting via GUI

Specs:

- Support Ignition

- IP54 water / dust resistance

- Vibration and Shock Resistance: MIL-STD-810G

- 75 mm/100 mm VESA

- Power: 9 to 32VDC input, 19VDC 1.57A output

- I/O: USB 3.0 x2, USB 2.0 x2, RF pass-through x2, RS-232

x2, VGA x 1, HDMI x 1, DI x4, DO x4

- Operating Temperature: -20°C ~ 50°C

- Dimensions: 301 x 290 x 126 mm

- Weight: 2080g

VD10 Vehicle Dock (Copy)

Key Features :

- Simple one-handed installation

- Lock with pairing key

- Flexible antenna pass-through setting

Specs:

- Vibration Resistance: MIL-STD-810G

- Power: 12/24 VDC input, 19 VDC 4.74A output

- 75 mm VESA

- RS-232 supports 0V/5V/12V, @1A

- I/O: USB 2.0 x2, RS-232 x 1, RJ45 x 1, SMA antenna

connector x2

- Operating Temperature: -10°C ~ 50°C

- Dimensions: 299 x 72 x 255 mm

- Weight: 850g

SN203-SN01 NFC + Smart Card Reader, 2 in 1 (Copy)

Specs:

- Dimensions: 102 x 81 x 13 mm

- Weight : 80g

NFC:

- Frequency: 13.56MHz

- Tag Type :

- ISO/IEC 14443A, 14443B, 15693

- MIFARE 1K/4K, Ultralight

- NFC-IP2 protocol

Smart Card Reader:

ISO7816 Compliant

EMV2000 (EMV 4.1) Compatible

- Support PC/SC1.0 & PC/SC2.0

Cards -

Atmel: AT88sc1608, AT88sc153

Atmel: AT24c128, AT24C256

ST: M14C16, M14C04

Siemens 2-wire link protocol: sle4432/42

Siemens serial 3-wire bus: sle4418/28

VC01 Vehicle Charger (Copy)

Specs:

- Vehicle charger with cigarette plug

- Input: 10-32V, 11A Max

- Output: 18.5V, 4.9A (90W)

VC02 Vehicle Charger (Copy)

Specs:

- Vehicle charger with cigarette plug

- Input: 11 - 16V / 22 - 32V

- Output: 19V, 4.73A (89.87W)

VC03 Vehicle Charger (Copy)

Specs:

- Vehicle charger with wire cable ACC 3 pin

- Input: 11 - 16V / 22 - 32V

- Output: 19V, 4.73A (89.87W)

IP54 Digitizer Pen (Copy)

Scroll & Click on accessory to find out more…

Unparalleled Connectivity

With a wide range of connectivity capabilities including 802.11 ac with 2X2 MU-MIMO, Bluetooth 5.0, and 4G LTE, PA501 guarantees seamless connection throughout your entire shift. The dual SIM design allows field workers to receive reliable connectivity and thus much reduce downtime and increase performance.

Proven Expandability and Security

Designed for security applications, the 2D barcode reader with optical character recognition (OCR) feature, fingerprint reader and NFC can assist mobile workers in performing accurate and fast biometric capture and identity validation.

Unmatched Battery Life

With the hot-swappable battery design and fast-charging capability, mobile workers are further allowed to get back to work in a shorter period of time. Up to 13 hours battery life, the hot-swappable standard battery plus fast charging technology and high-capacity battery can support around-the-clock work.
